Oracle Cloud Infrastructure (OCI) Security Workshop ArchitecturePermalink

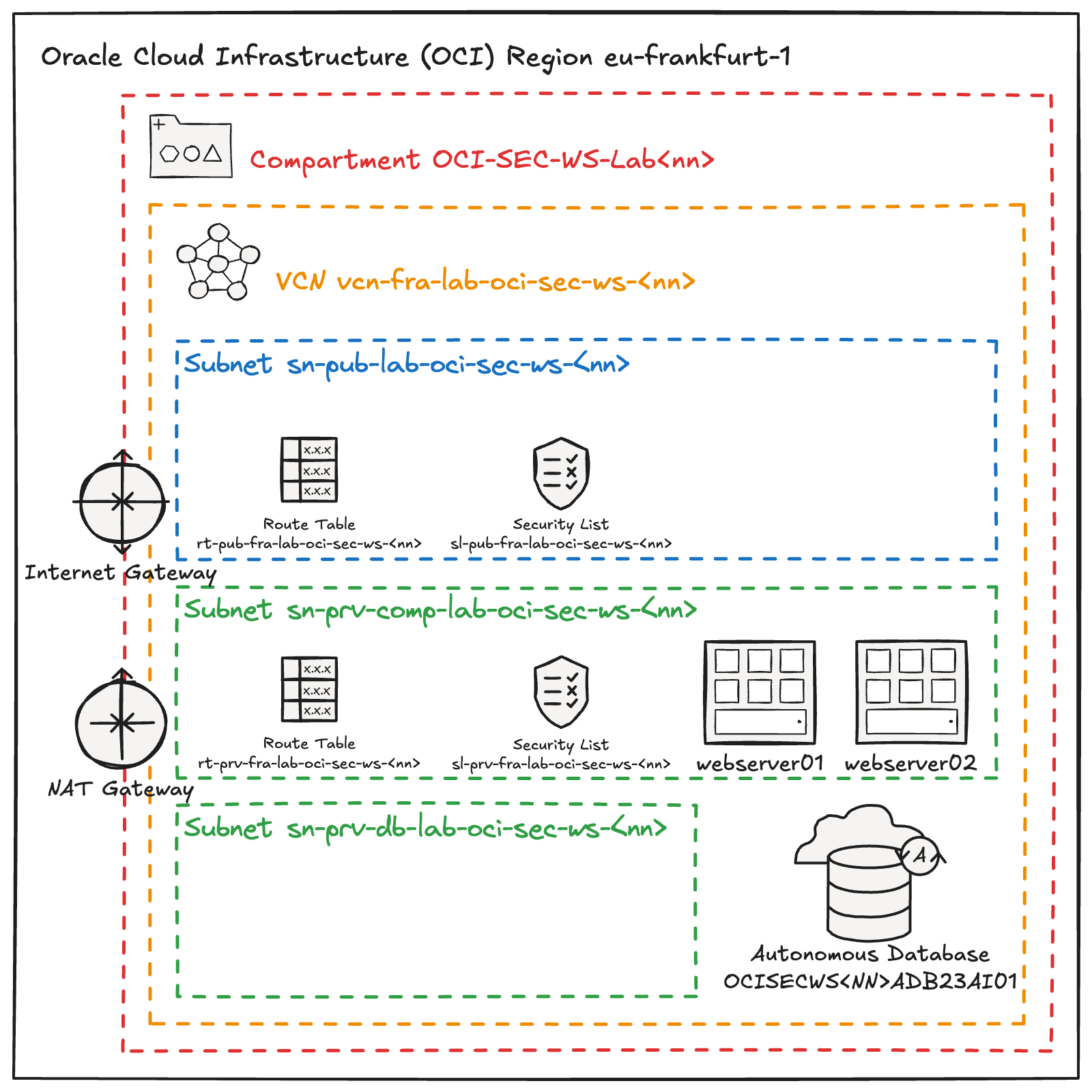

The following diagram illustrates the architecture set up for the Oracle Cloud Infrastructure (OCI) Security Workshop environment. Each participant will have access to a similar setup to perform a series of hands-on security exercises.

OCI Security Workshop Architecture

Key Components of the ArchitecturePermalink

  • Region: eu-frankfurt-1 - The environment is hosted in the Frankfurt region.
  • Compartment (OCI-SEC-WS-Lab): A dedicated compartment is created for each workshop environment, isolating resources and managing security controls.
  • Virtual Cloud Network (VCN): The VCN (vcn-fra-lab-oci-sec-ws-<nn>) forms the network boundary for the resources within the lab.
    • Public Subnet: Contains resources accessible from the internet, secured by a route table and security lists.
    • Private Subnet for Compute: A private subnet hosting compute instances (e.g., web servers webserver01 and webserver02), isolated from public access.
    • Private Subnet for Database: A subnet dedicated to hosting the Autonomous Database (OCISECWS<nn>ADB23AI01).
  • Gateways:
    • Internet Gateway: Allows public internet access for the resources in the public subnet.
    • NAT Gateway: Facilitates secure outbound internet traffic for the private resources.

Lab Exercise Focus Areas:Permalink

  1. Key Management: Create a vault to manage encryption keys and apply them to resources.
  2. Cloud Guard:
    • Manual Remediation: Detect and manually resolve public object storage buckets.
    • Auto Remediation: Automatically respond to potential security risks, like public bucket visibility.
    • Notification Setup: Configure alerts to be informed of any detected issues.
  3. Data Safe: Setting up and configuring Oracle Data Safe for enhanced data security.
  4. Security Zones / Web Application Firewall: Ensuring compliance with Security Zones and protecting web applications.
